Building a Semantic Search Engine and RAG Applications with Vector Databases and Large Language Models

Submitted by canali on
Blog article:

This blog post is about building a getting-started example for semantic search using vector databases and large language models (LLMs), an example of retrieval augmented generation (RAG) architecture. You can find the accompanying notebook at this link. See also the SWAN gallery.

CERN users can run the notebooks using the SWAN platform and GPU resources.

Other options for running the notebooks in the cloud with a GPU include Google's Colab
Open In Colab


Goals and Scope

Our primary goal is to demonstrate the implementation of a search engine that focuses on understanding the meaning of documents rather than relying solely on keywords.

The proposed implementation uses resources currently available to CERN users: Jupyter notebooks with GPUs, Python packages from the open source ecosystem, a vector database.

Limitations:it's important to note that this example does not cover building a fully-fledged search service or chat engine. We leave those topics for future work, here were limit the discussion to a getting-started example and a technology demonstrator.


Understanding Key Concepts

Semantic search: Semantic search involves searching for meaning rather than just literal matches of query words. By understanding the context and intent behind the query, semantic search engines can provide more accurate and relevant results.

Vector Database: A vector database is a specialized type of database designed to handle vector embeddings. These embeddings represent data in a way that captures essential semantic information. They are widely used in applications such as large language models, generative AI, and semantic search.

Large Language Models (LLMs): LLMs are powerful language models built using artificial neural networks with a vast number of parameters (ranging from tens of millions to billions). These models are trained on extensive amounts of unlabeled text data using self-supervised or semi-supervised learning techniques.


Implementation details

Building a semantic search prototype has become more accessible due to recent advancements in natural language processing and applied ML/AI. Using off-the-shelf components and integrating them effectively can accelerate the development process. Here are some notable key ingredients that facilitate this implementation:

  • Large Language Models (LLMs) and embedding Libraries
    • The availability of powerful LLMs such as OpenAI GPT-3.5 and GPT-4, Google's Palm 2, and of embedding libraries, significantly simplifies the implementation of semantic search and natural language processing in general. These models provide comprehensive language understanding and generation capabilities, enabling us to extract meaning from text inputs.
  • Platforms:
    • Platforms and cloud services such as Hugging Face offer valuable resources for operating with ML models as these libraries provide pre-trained models, tokenization utilities, and interfaces to interact with LLMs, reducing the implementation complexity.
  • Open Source Libraries like LangChain:
    • Open source libraries like LangChain provide a convenient way to integrate and orchestrate the different components required for building applications in the semantic search domain. These libraries often offer pre-defined pipelines, data processing tools, and easy-to-use APIs, allowing developers to focus on the core logic of their applications.
  • Vector Databases  and Vector Libraries:
    • Vector libraries play a crucial role in working with semantic embeddings. They provide functionalities for vector manipulation, similarity calculations, and operations necessary for processing and analyzing embedding data. Additionally, vector databases are recommended for advanced deployments, as they offer storage and querying capabilities for embeddings, along with metadata storage options. Several solutions are available in this area, ranging from mature products offered as cloud services to open source alternatives.

Back-end: prepare the embeddings and indexes in a vector database

To ensure factual accuracy and preserve the original document references, we will prepare the embeddings and indexes in a vector database for our semantic search query engine. Additionally, we aim to enable indexing of private documents, which necessitates storing the embeddings rather than relying on the LLM model directly.
Transforming document chunks into embedding vectors is a crucial step in the process. There are specialized libraries available that utilize neural networks for this task. These libraries can be accessed as cloud services or downloaded to run on local GPU resources. In the accompanying notebook, you can find in the accompanying notebook an example demonstrating this process.
A second import part is about storing the embeddings. For this a vector library or a vector database can be quite useful. A library like FAISS is a good idea is you have a small amount of documents and/or are just prototyping. A vector DB can provide more features than a simple library, in particular when handling large amounts of documents. In the accompanying notebook we use the FAISS library and, as alternative option, OpenSearch k-NN indexing. Note that several other vector database products can be readily "substituted" to offer comparable and, in some cases, extended functionality.
Note: CERN users have the option to contact the OpenSearch service to request an instance of OpenSearch equipped with the plugin for k-NN search. This can be a valuable resource for your semantic search implementation.
Figure 1: A schematic diagram of how to prepare a set of documents for semantic search. The documents are split in chunks, for each chunk embeddings are computed with a specilized library and then stored in a vector database.

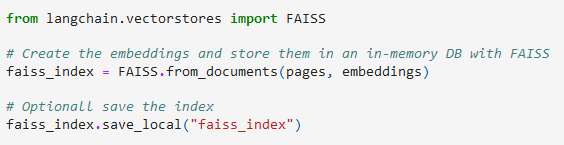

When using FAISS as the Vector library, this is how embedding and indexing can be done:


This is the equivalent code when using OpenSearch as Vector DB:


Semantic querying using similarity search and vector DB indexes

This uses a key functionality of vector libraries and vector databases: similarity search. The general idea is to create a vector embedding for the query and find in the database of embedded vectors the closest elements to the query. For large document collections this can be slow, so vector libraries and databases implement specialized indexes and algorithms for this, for example approximate k-nearest neighbors search.
Figure 2:  A diagram of the similarity query process. The query is converted into embeddings and similarity search via the specialized indexes is performed using a vector database or vector library. Algorithms such as k-nearest neighbors are used to find the matching document chunks for the given query.
Semantic search provides a list of relevant documents for a user query, list the page and text chunk reference, as in this example:



Grand Finale: a Large Language Model for natural language query capabilities

Semantic search returns a list of relevant document snippets, as the last (optional) step we want to convert that into a coherent text answer. For this we can use LLM models. The technique is simple, we just need to feed the query and the relevant pieces of text to the LLM and then take the answer from the model. For this we need to use a rather sophisticated LLM model. The best ones currently work as cloud services (some are free and some charge per use), other models available for free download currently require rather powerful GPUs to run locally.
This is the final result: a system capable of querying the indexed text(s) using natural language. In the following example we apply it to replying to queries about the future of LHC computing, based on the document A Roadmap for HEP Software and Computing R&D for the 2020s




In this blog post, we have demonstrated how to build a beginner's semantic search system using vector databases and large language models (LLMs). Our example has utilized Jupyter notebooks with GPUs, Python packages, and a vector database, proving that a semantic search engine that queries documents for meaning, instead of just keywords, can be feasibly built using existing resources.

In our implementation, we demonstrated how embeddings and indexing can be performed using FAISS as the vector library, or in alternative with OpenSearch as the vector database. We then moved onto the semantic query process using similarity search and vector DB indexes. To finalize the results, we utilized an LLM to convert the relevant document snippets into a coherent text answer.

Though the example provided is not intended to function as a fully-developed search service, it serves as an excellent starting point and technological demonstrator for those interested in semantic search engines. Additionally, we acknowledge the potential of these methods to handle private documents and produce factually accurate results with original document references.

We believe the combination of semantic search, vector databases, and large language models holds large potential for transforming how we approach information retrieval and natural language processing tasks.

The accompanying notebook, providing step-by-step code and more insights, is accessible on GitHub and via the CERN SWAN Gallery. For researchers and developers interested in delving into this exciting area of applied ML/AI, it offers a working example that can be run using CERN resources on SWAN, and also can run on Colab.



I would like to express my sincere gratitude to my colleagues at CERN for their invaluable assistance and insightful suggestions, in particular I'd like to acknowledge the CERN data analytics and web notebook services, the OpenSearch service, and the ATLAS database and data engineering teams. Their expertise and support have played a crucial role in making this collection of notebooks possible. Thank you for your contributions and dedication.
